Description
Brand: HAMMER & TONGS
Color: White
Features:
- PoE extender: Includes 1 PoE-in 3 PoE out ports, 10/100 Mbps rate. Powered by PoE network, no AC power required

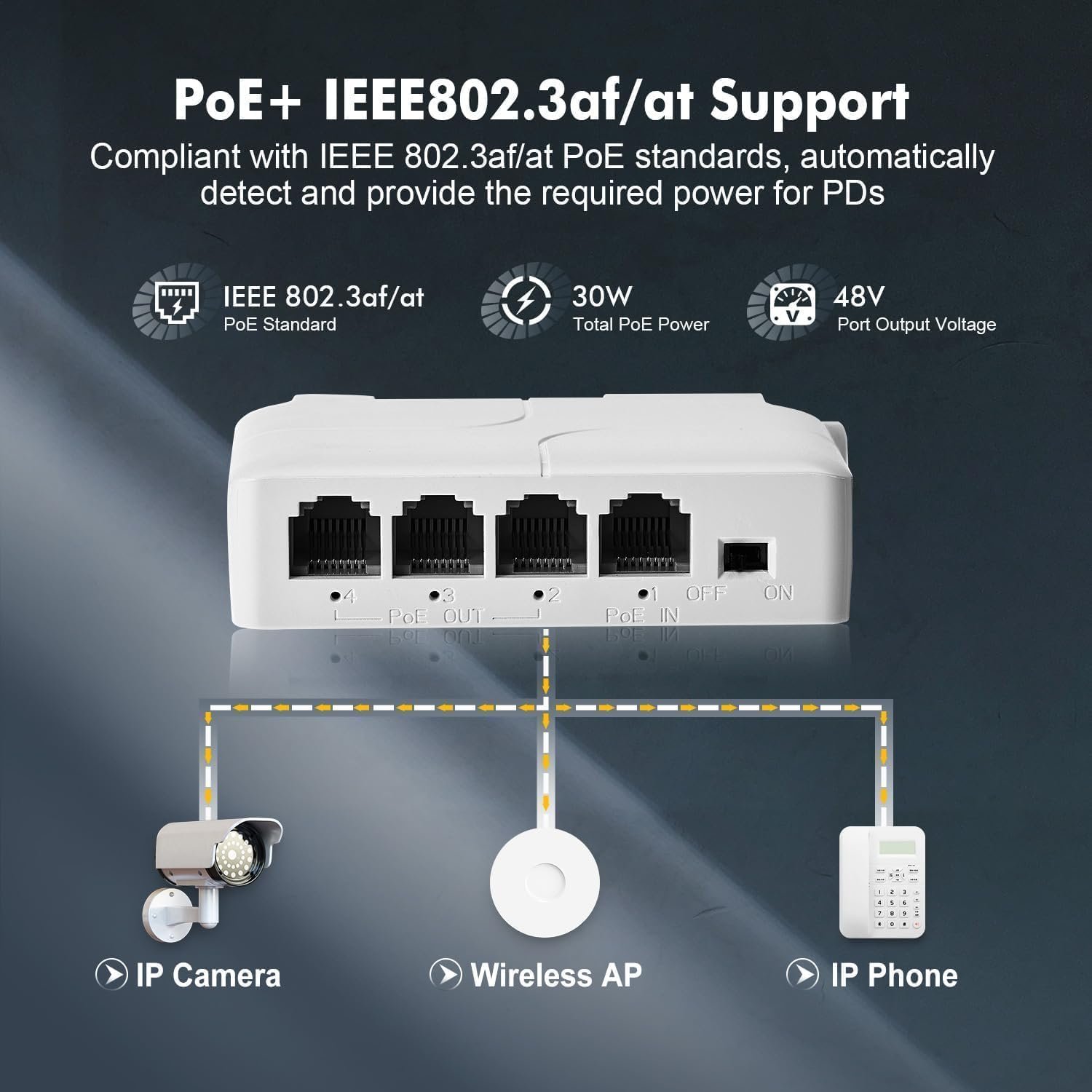

- IEEE 802.3 af/at: Supports standard PoE, input max 30W, output max 24W, average 8W per port. PoE Voltage 44-57 VDC PoE Pin: Input: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-); Output: 1/2 (+), 3/6 (-)
- Plug & Play: Supports power detection automatically detect devices, just plug in the Ethernet cable, connect directly to the device, LED indicator shows the port status, without configuration. *Please note that does not support 24V passive PoE *
- Easy installation: supports wall mount and DIN rail bracket, smaller size, space-saving, suitable for many positions

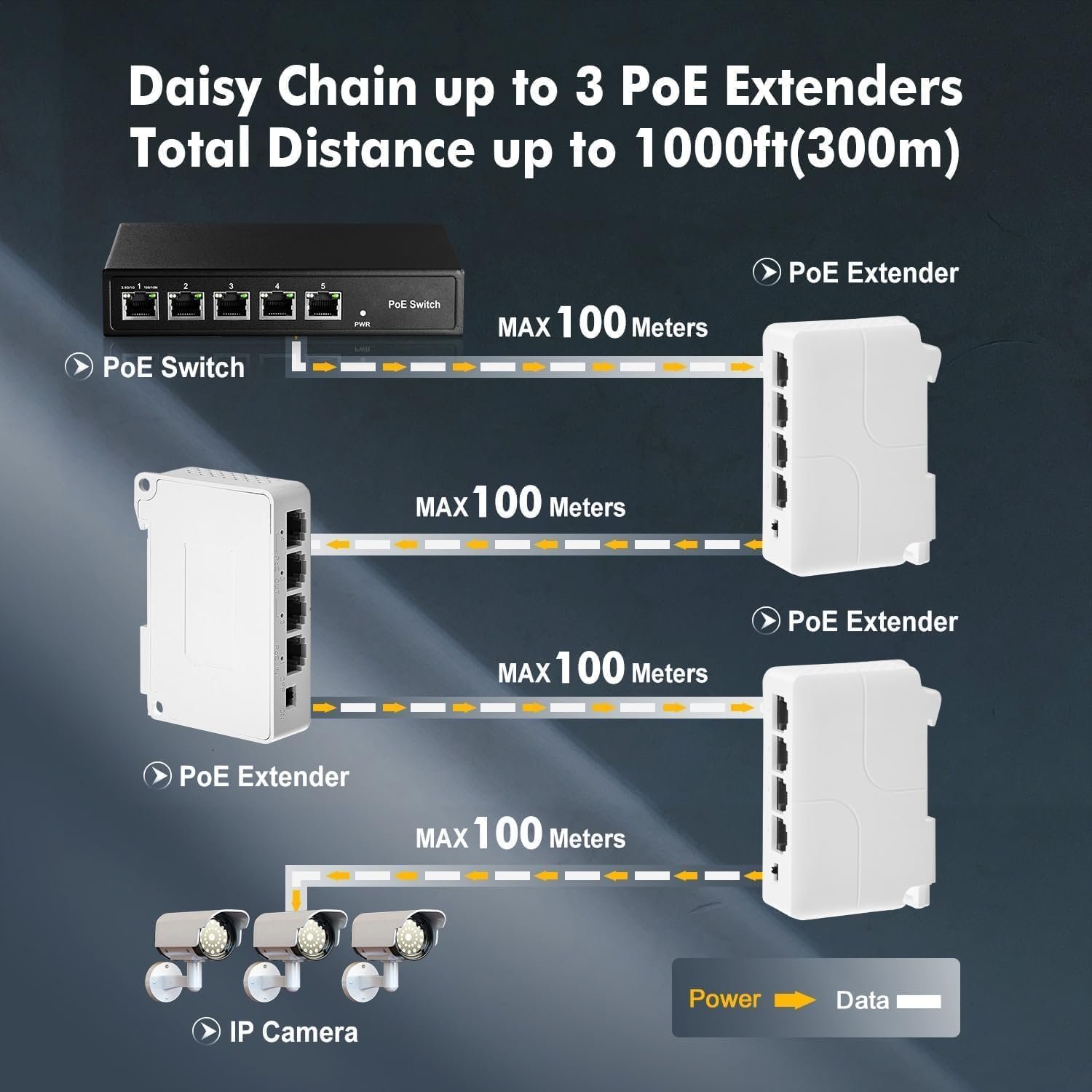

- 【Widely Used】Support 3-stage cascading, can connect Poe AP, camera, phone and other POE devices, extends POE coverage at low cost
Package Dimensions: 100x100x100

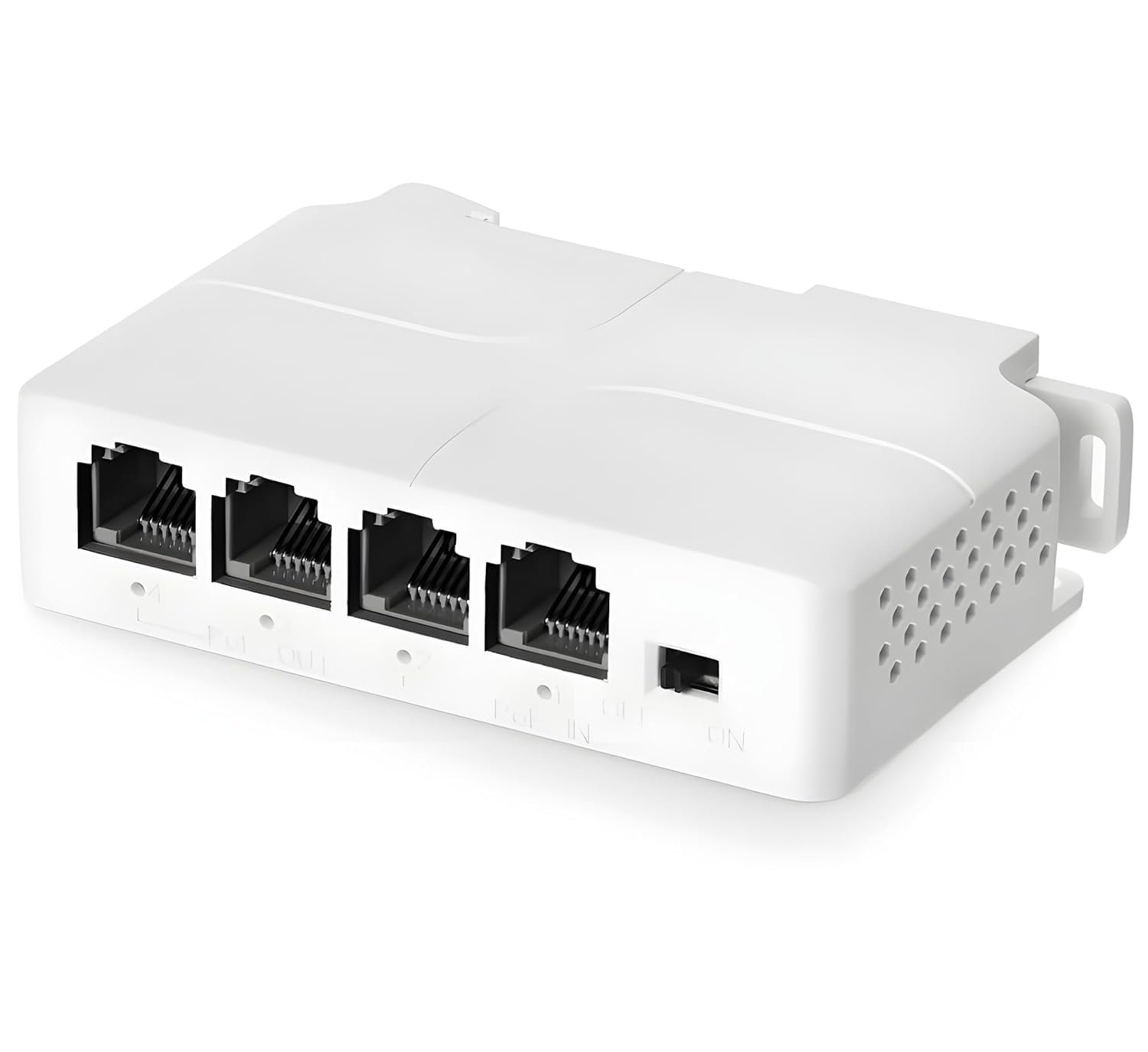

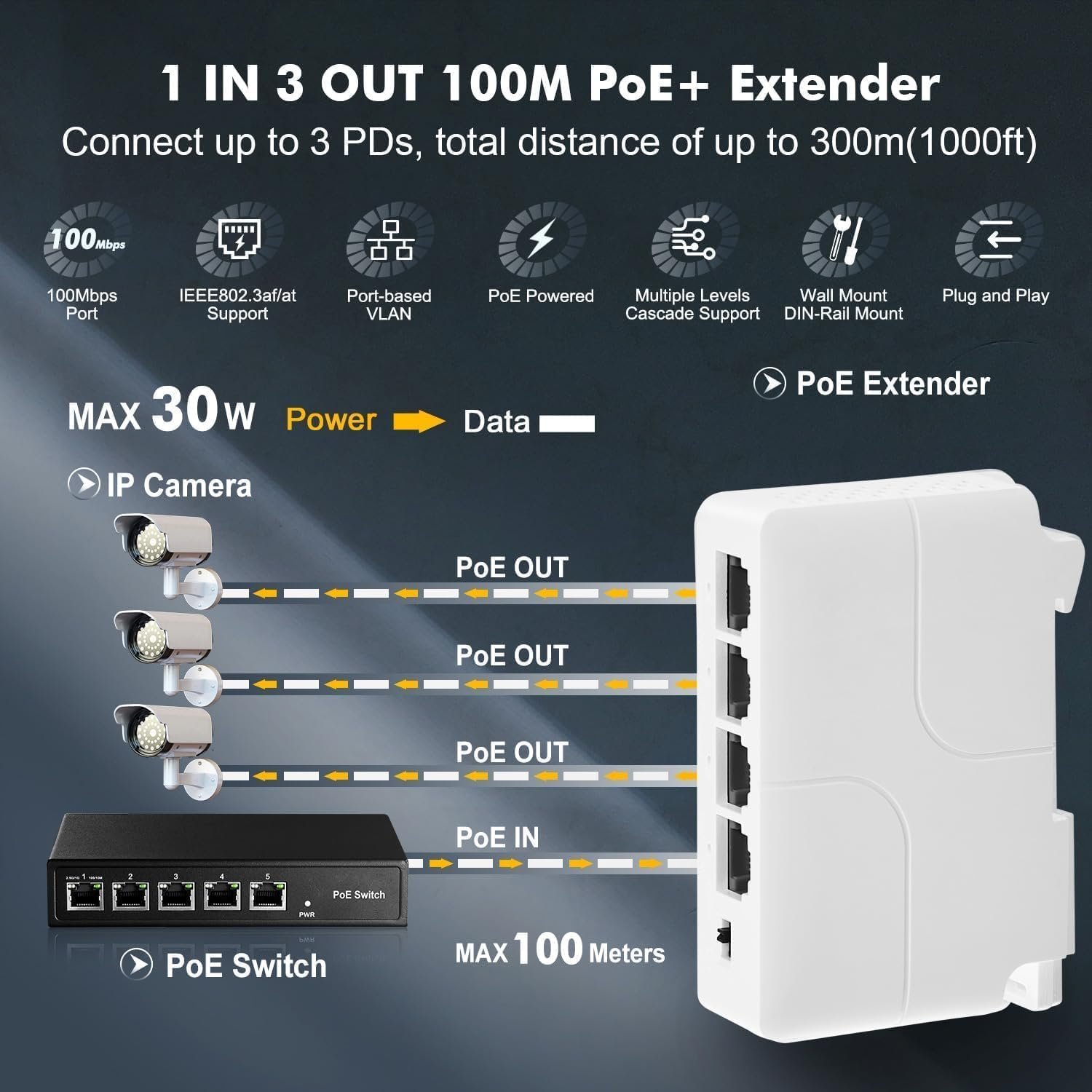

Details: PoE+ extender provides 1 × 10/100Mbps PoE in port and 3 × 10/100Mbps PoE out ports for remote PoE/PoE+ device installation. The PoE extender auto-detects a PoE (15.4W) or PoE+ (30W) devices. The PoE extender features a convenient wall mountable and DIN mountable design for installation flexibility. Daisy-chain up to 3 units for a total PoE+ network extension of 300m (1000 ft.).
